PRODUCT
 |
| HAMMER 200 (Euro 5) Inquiry |
Specifications
| Item | Specs |
| Engine Mode | 162FMK-2 |
| Engine Type | Single Cylinder, 4 Stroke, Air Cooled |
| Displacement(ml) | 176 |
| Max.Power(kw/r/min) | 9Kw/8000rpm |
| Max.Torque (N.m/r/min) | 13N.m/6000rpm |
| Compression Ratio | 9.5：1 |
| Bore and Stroke(mm*mm) | 62*58.4 mm |
| Ignition method | CDI |
| Starting method | Electric Start |
| Gearshift Method | F+N+R, CVT |
| Driving Method | Chain Drive |
| Size: L*W*H | 1760*1040*1120 |
| Axle Distance / Wheel Distance | 1150mm / 860mm |
| Height Height | 860 mm |
| Ground Clearance | 290 mm |
| Max Speed | HAMMER A:≤40km/h，HAMMER B:≤60km/h |
| Brake | Disc/Disc |
| Wheel | Iron Wheel 10 inch |
| Tyre | Front:21*7-10; Rear:22*10-10 |
| Fuel Tank | 9.7 L |
| Net Weight | 197 kgs |
| Packing Carton | 1700*1130*820mm |
| Qty/Container | 42 units/40HQ |
Selling Points of the product
1. Certificate: Euro 5 EEC/COC approved
2. Engine: 200cc
3. Gear: CVT with Reverse Gear
4. Seat: a new long seat for 2person (comfortable & humanized)
5. Packaging: 7 layersshipping carton with strong iron frame
6. Colors painting samefinishing as car's, painted by our own paint-workshop, fully controlled quality.

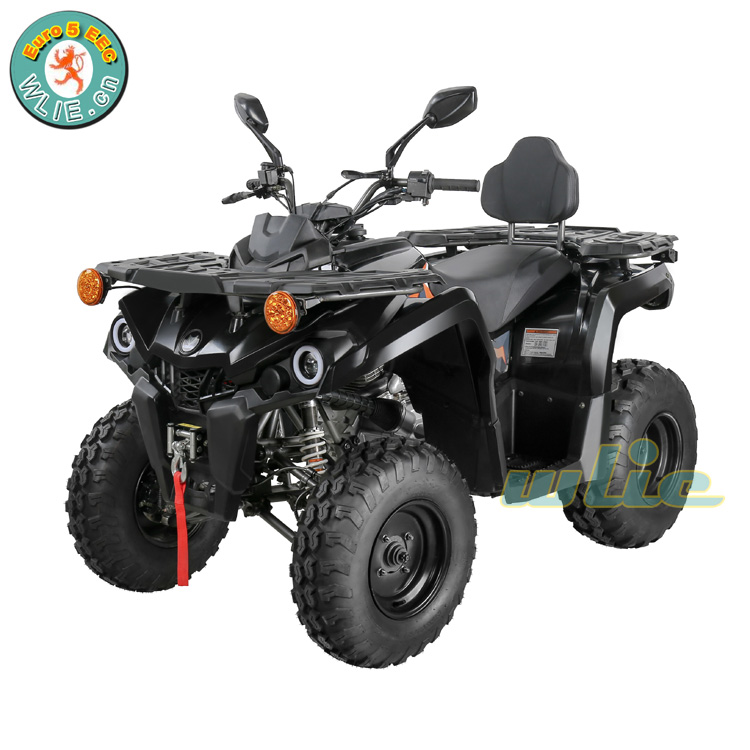

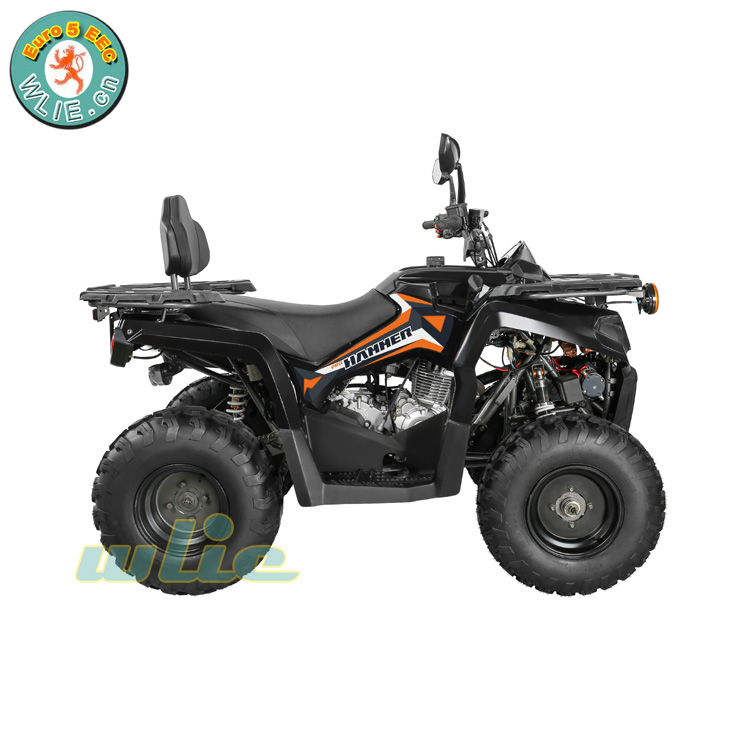

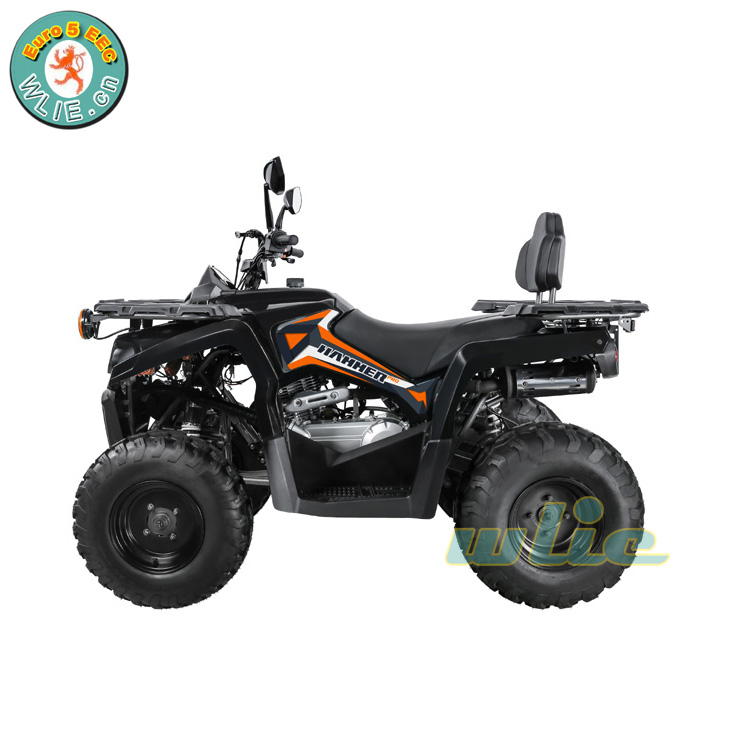

Multi-angle pictures of the product
 |
 |
 |
Product certificate
Euro 4 EEC Homologation
